Blast Drill Extension Rod Tapered Drill Rod Small Hole Diameter Antirust
Tapered drill rods Applications
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry
our tapered drill rods are made from the best steels and alloys in China,from Japan or Germany CNC lathe thread and drilling alloy perforations to ensure the accuracy of the ball tooth bit. Advanced thermal inlay technology ensures that the quality of each ball bit is stable.

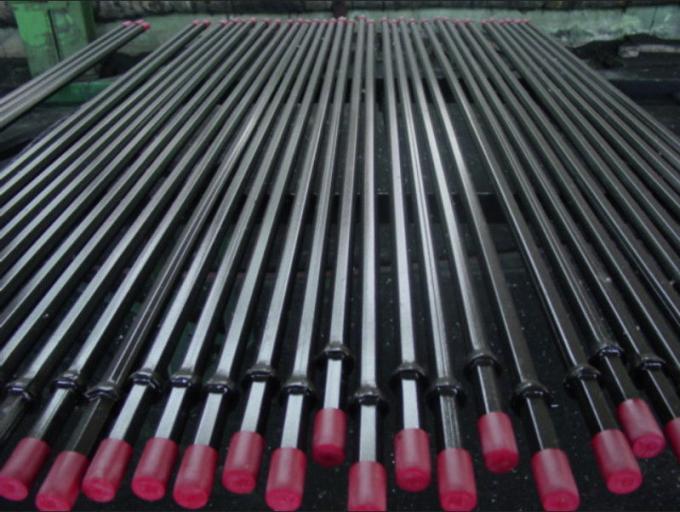

Tapered drill rod,also called taper rod, tapered drill steels, This provides a hexagonal chuck section to provide leverage for the rotation chuck bushing. It usually has a forged collar to maintain the proper shank striking face position in the rock drill, and a tapered bit end. Tapered steel lengths— available from 0.6 mto 3.6 m in length—are measured from the collar to the bit end.
Technical Reference
| Product Name: | Hex tapered rod |
| Types | Tapered drill rods, Integral drill rods, Plug hole rods |
| Application:: | Tapered drill rods are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling |
| we can produce as your request of carbide size, different length of drill rods. |
| Types of drill rods | Specifications | Length (mm) | Shank | Weight (kg) |
| Tapered drill rods | Taper Angle: 4, 6, 7, 11, 12 degree | 400mm to 8000mm | Hex22mm*108mm Hex25mm*159mm Hex19mm*108mm | 1.7 - 24.9 |
| Integral drill steel | Bit diameter: 26mm, 28mm, 30mm, 32mm, 34mm, 36mm, 38mm, 40mm, 42mm | 400mm to 4800mm | 3 – 15.4 |
| Plug hole rods | Chisel bit diameter: 17mm, 20mm, 22mm | 150mm to 710mm | 0.6 - 2.9 |
1. Packing details : Wooden case and steel bundle.
2. Handling time for an order
Based on order quantity, normally it takes 15-30 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Shipping way
Sample order: We suggest Express like DHL/UPS/TNT/FEDEX/EMS or by air.
Bulk order: We suggest by sea shipment .
Why choose our Rock drill tools?
1.Tapered rock drill rod connect with button bits perfectly for drilling holes
2.Stable and mature welding technology ensure high quality of bits
3.Accurate dimension of taper degree perfectly matches the button bits
4.work reliable and very cost-effective
5. Rod bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
We specialize in Rock drilling tools, including rock drill bits,tapered drill tools,threaded drill tools,Down the hole drilling tools ( DTH ), which are widely used in mining , quarrying , well drilling and construction . All these products are compatible with other world world leading brands such as Atlas Copco , Sandvik , Mitsubishi and Boart Longyear .
Test is the best way to find suitable rock drilling tools, for samples please Email drillbit@qqcom
